WASTE LITHIUM BATTERY RECYCLING EQUIPMENT
3E waste Lithium Batteries crushing & sorting line, it can separating electrode material and other materials by physical crushing method, adopting multiple screening ways , air separation methods, use static and dynamic combination with recovery of valuable components. Recovery black powder, diaphragm, copper foil, aluminum foil, etc., in the process of crushing and separation, use alkaline water film neutralize to collect electrolyte.
- SPECIFICATIONS
- MAIN EQUIPMENTSVIDEOS
- VIDEOS

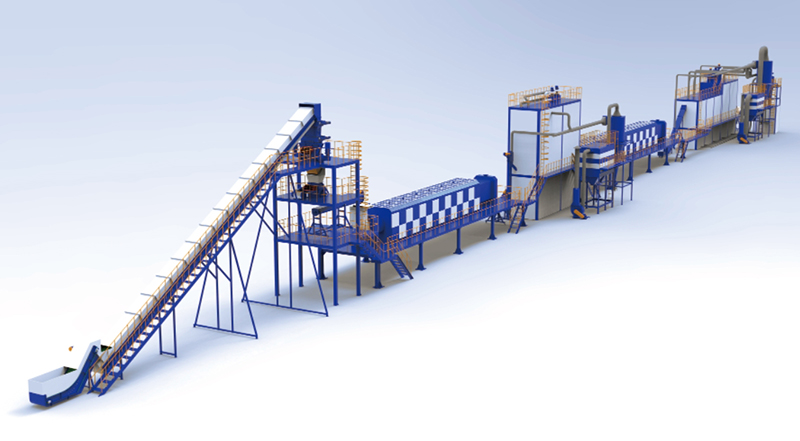

SYSTEM LAYOUT
MAIN EQUIPMENTS

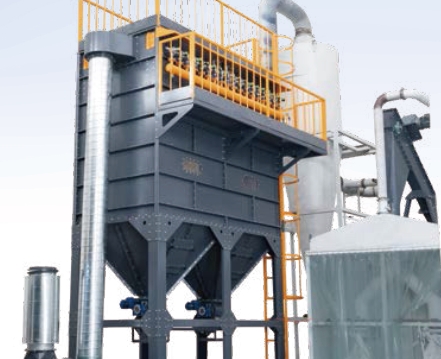

Air Separator

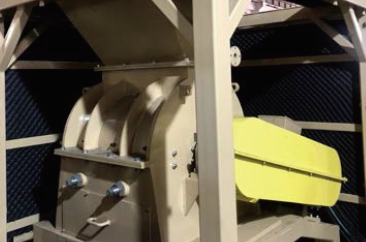

Shredder
Fine crusher
Turbo mill
Output material

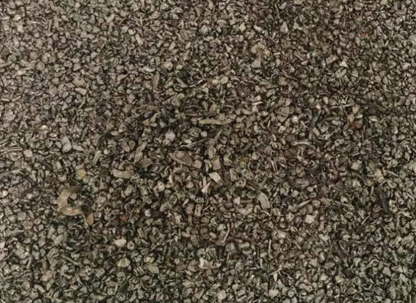

Copper granules
Aluminum particle
Film

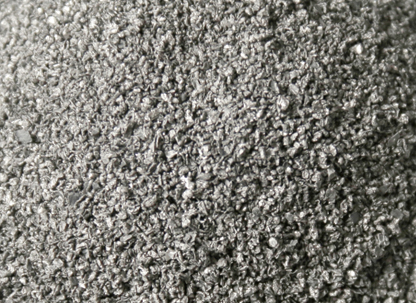

Metal & Graphite powder
Production feature ：
Capacity：500kg-2000kg/h.
Application range : Disposal of waste power lithium battery, mobile phone lithium battery, electrode.
Equipment feature ：
- The plate crusher is used for the preliminary crushing. There is air passage inside cutting chamber. So there is no flammable gas accumulates and no fire risk during the crushing process.
-
It can process crushing without battery discharge, so that the diaphragm could be recovered in advance. The pressure of exhaust gas treatment will be reduced in low-temperature pyrolysis and the quality of black powder can be improved.
- The separation includes static and dynamic screening. It will separate copper, aluminum foil, black powder and the diaphragms. It could improve the recovery rate for the black powder.
-
Adopting unique crusher, it could separate the black powder, copper foil and aluminum foil very well. What is more those material will get into particle, so it is better for the separation.
- Humanized design, PLC automatic control, easy maintenance .
The complete waste lithium batteries recycling line from Guangzhou 3E Machinery include crushing, specific separation for aluminum

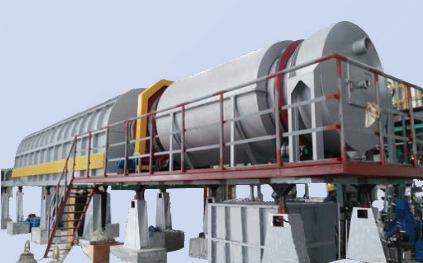

granules, heating carbonization for black powder and film washing process.
CASES
-
产量：1000kg/h
投产时间：2020

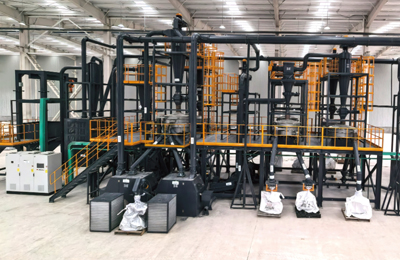

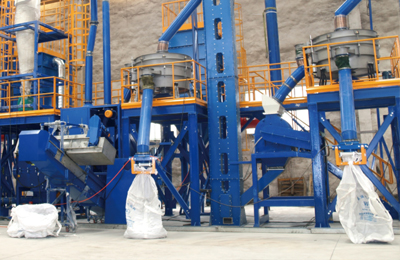

Waste lithium battery recycling line,South Korea
-
产量：1500kg/h
投产时间：2022

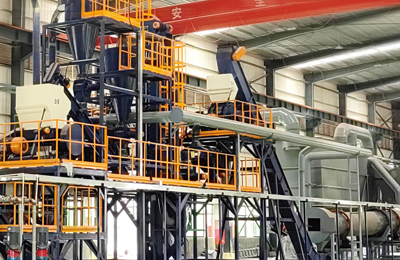

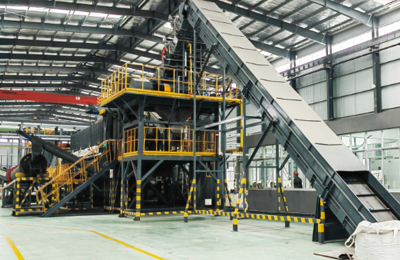

Waste lithium battery recycling line,China HuNan
-
产量：1500kg/h
投产时间：2020

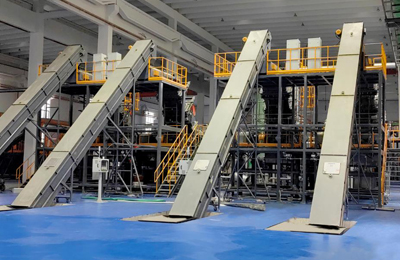

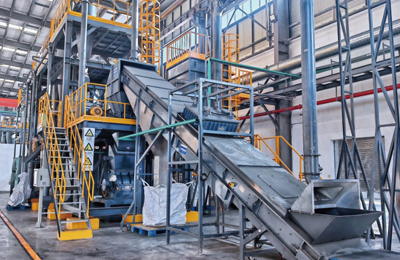

Waste lithium battery recycling line,China
-
产量：1000kg/h
投产时间：2020
Zhejiang line in China
MAIN EQUIPMENTSVIDEOS
MAIN EQUIPMENTS
|
|

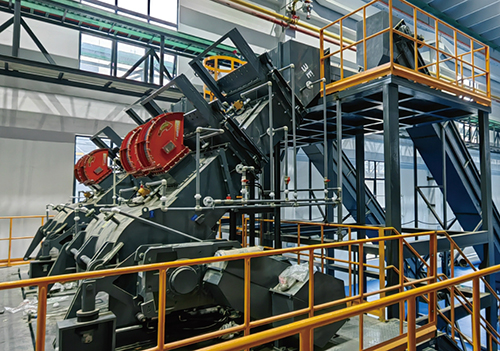

The pre-shredder specialized for waste lithium batteries recycling is improved model based on Italian style shredder.
|
|
|
Fine crusher
|
|
|
Turbo mill
|
